Specifications
Product Category : เพดาน
Composition : เส้นใยโพลีเอสเตอร์
Weight : 2,400 gram / m2
Density : 200 kgs/Cubic.m +/-
Thickness : 12 mm. +/-10%
Size : 1,220 mm x 2,800 mm
Dimension : -
Performance
Sound Transmission Class : STC 5, ISO 717 Part 1
Sound Absorption : NRC 0.45 with no air gap, ISO 354
Color Fastness to Light : > 6, ISO 105 B02-1994
Reaction to Fire : EN 13501-1, Class B-s1, d0
Indoor Air Quantity : ปล่อย VOCs ต่ำ, ฟอร์มาลดีไฮด์และปราศจากฟีนอล
Moisture Content : < 0.10% โดยน้ำหนัก

Ceiling Baffle

Acoustic Wall and Ceiling

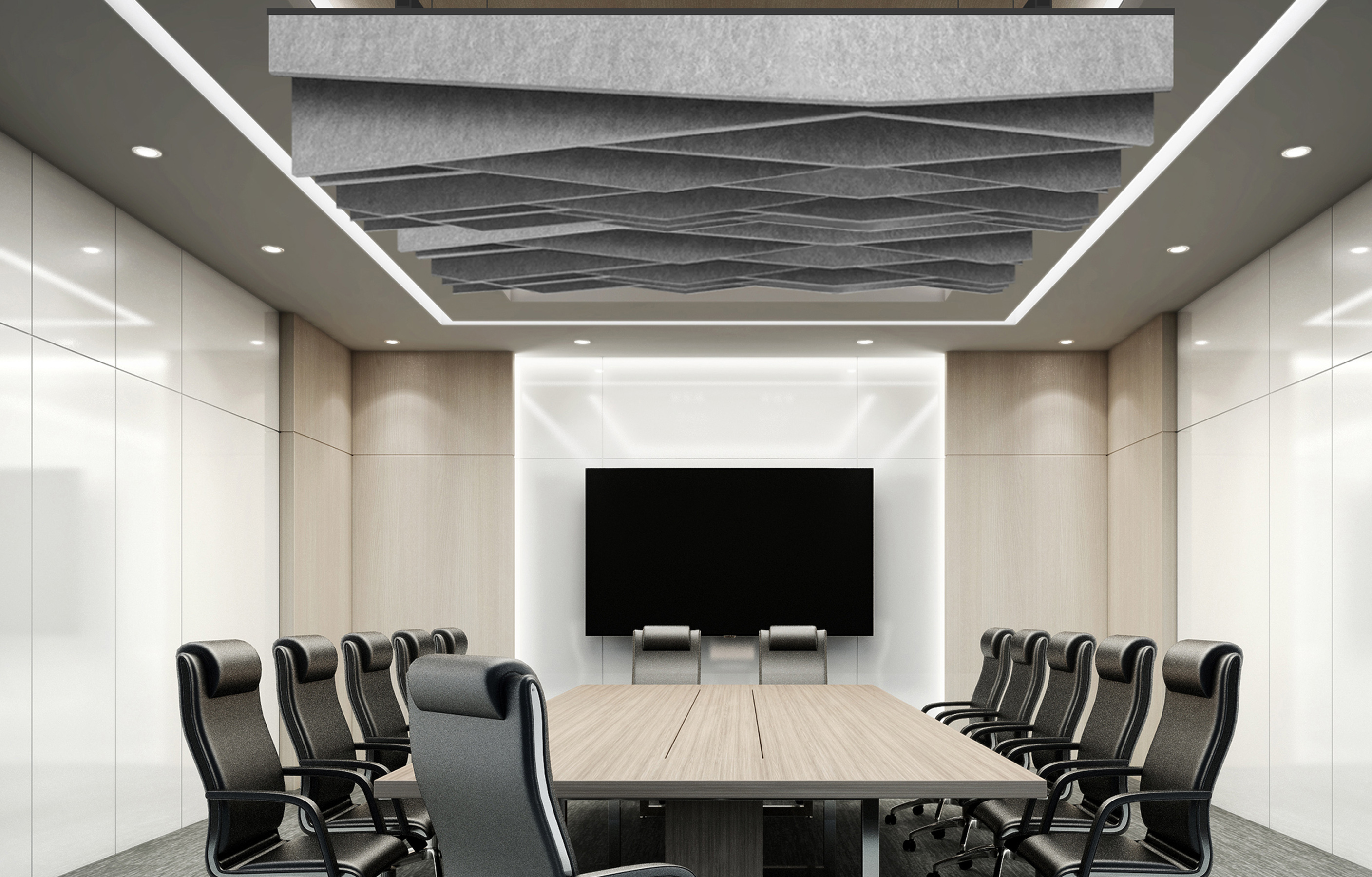

acoupanel® is engineered into vertical beams or planks from 12mm panel material that fit easily to the existing ceiling with the fitting kit provided. Very effective when installed in areas surrounded by glass windows or hardly any wall space for acoustic wall covering. Shape and layout are customisable for the most effective sound and noise solution to each individual area.
